How to Install Your Tap Water Filter

Fits around 99% of Australian kitchen taps. Pick your tap type below and follow the steps for your fitting.

Before you start

What's in the box

Lay out the parts first. The fittings and seals cover the three common tap types.

Construction

Evolved H2O tap filtration system user manual
  • Tap connector ring
  • Tap water outlet selection lever
  • 304 stainless steel cover

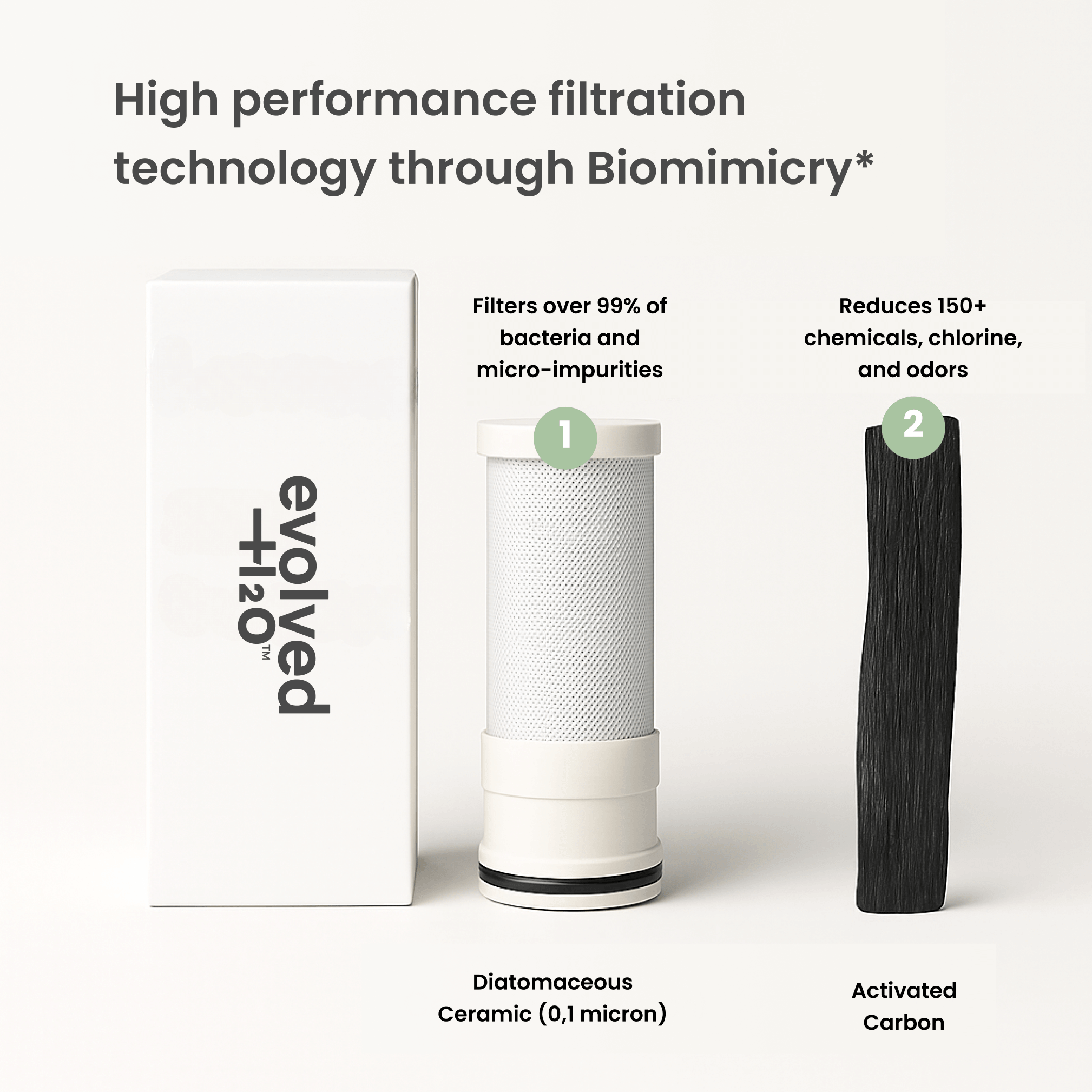

  • Activated carbon block filter
  • Waterproof ring
  • 304 stainless steel purified water outlet

Accessories

Evolved H2O tap filtration system user manual
  • M24 internal thread fitting
  • M22 external thread fitting
  • M20 external thread fitting
  • Universal joint
  • M20 rubber seal
  • 2 x M22 rubber seals

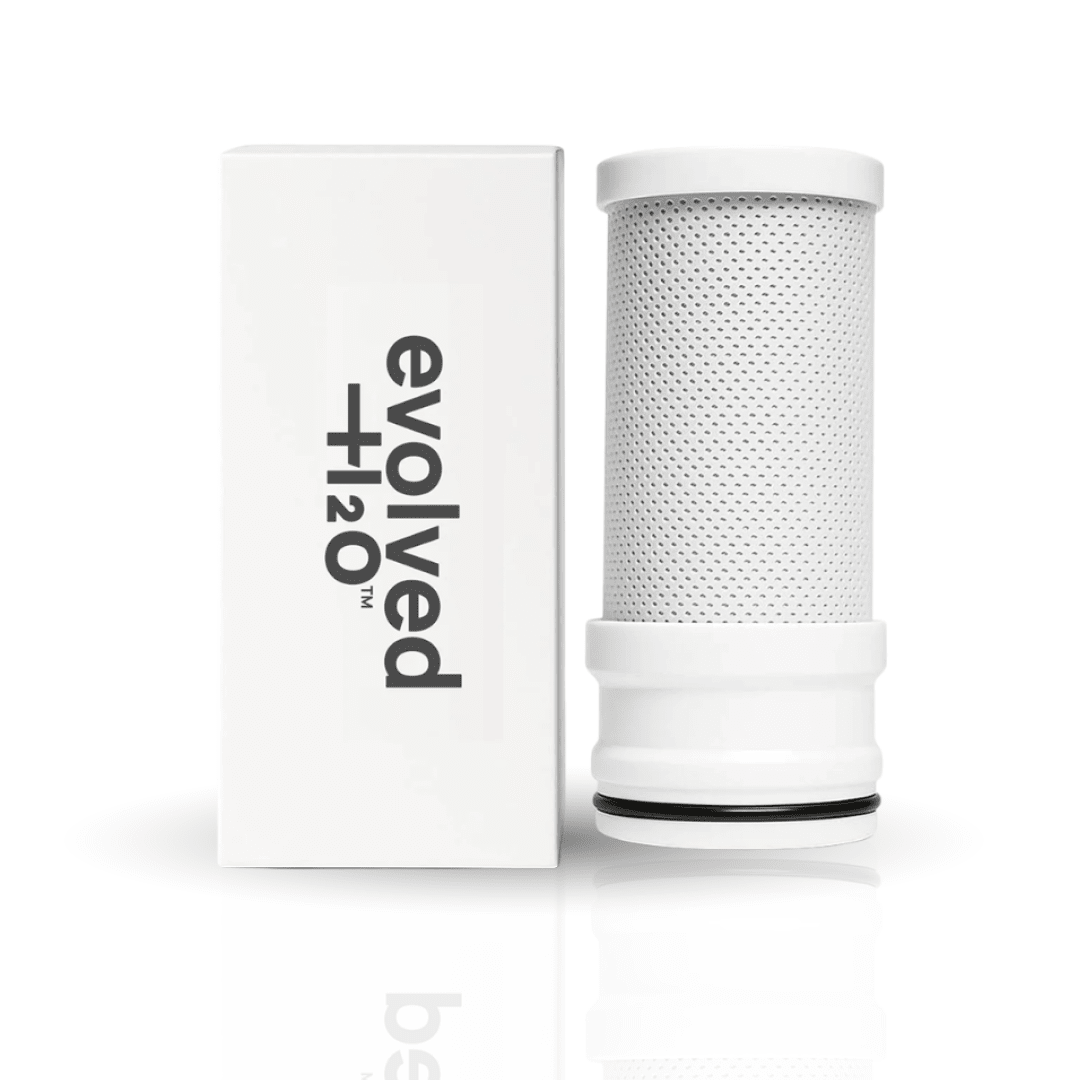

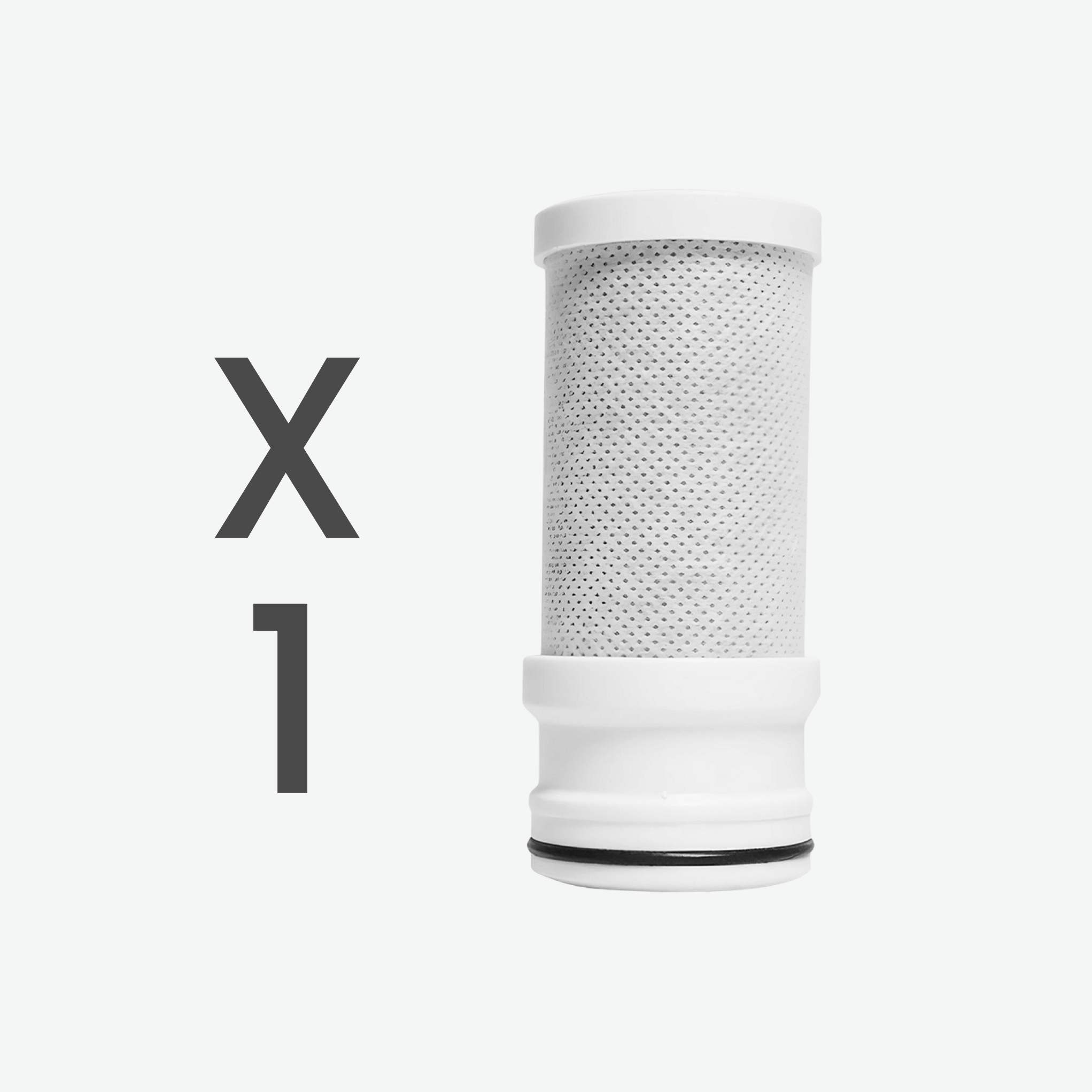

  • Activated carbon block filter
Step by step

Which tap do you have?

Check the end of your tap spout, then choose the matching type.

Threadless tap

You'll need
  • Universal joint
  • Flat-head screwdriver (not included)
  1. Step 1:

    Loosen the universal joint with a slotted (flat-head) screwdriver and fit the joint onto the tap. Tighten the joint to prevent leaks.

  2. Step 2:

    Make sure there is a rubber seal in the connection ring of the filtration system. Attach the filtration system to the universal joint through the connection ring and tighten the ring to prevent leaks.

  3. Step 3:

    Turn on the tap and turn the selection lever back and forth to test for leaks (tighten more if needed). If there are no leaks, let the water run until it runs clear.

View the diagram

Internal thread

You'll need
  • M22 or M20 external thread fitting
  • Rubber seal
  1. Step 1:

    Unscrew the existing tap bubbler and replace it with either the M22 or M20 external thread fitting.

  2. Step 2:

    Choose a suitable rubber seal and attach the fitting, with the seal, to the tap. Tighten to prevent leaks.

  3. Step 3:

    Make sure there is a rubber seal in the connection ring of the filtration system. Attach the filtration system to the fitting through the connection ring and tighten the ring to prevent leaks.

  4. Step 4:

    Turn on the tap and turn the selection lever back and forth to test for leaks (tighten more if needed). If there are no leaks, let the water run until it runs clear.

View the diagram

External thread

You'll need
  • M24 internal thread fitting
  • Rubber seal
  1. Step 1:

    Unscrew the existing tap bubbler and replace it with the M24 internal thread fitting.

  2. Step 2:

    Choose a suitable rubber seal and attach the fitting, with the seal, to the tap. Tighten to prevent leaks.

  3. Step 3:

    Make sure there is a rubber seal in the connection ring of the filtration system. Attach the filtration system to the fitting through the connection ring and tighten the ring to prevent leaks.

  4. Step 4:

    Turn on the tap and turn the selection lever back and forth to test for leaks (tighten more if needed). If there are no leaks, let the water run until it runs clear.

Tap has an M22 external thread? The connection ring of the filtration system has an M22 internal thread, so after removing the bubbler you can connect the filter directly to the tap without a fitting.

View the diagram

Not sure which tap you have? Send a photo of your tap to info@evolvedh2o.com and we'll tell you which fitting to use.

Prefer it on paper?

Download the installation guide

The full illustrated guide for all three tap types, ready to print or keep on your phone.
